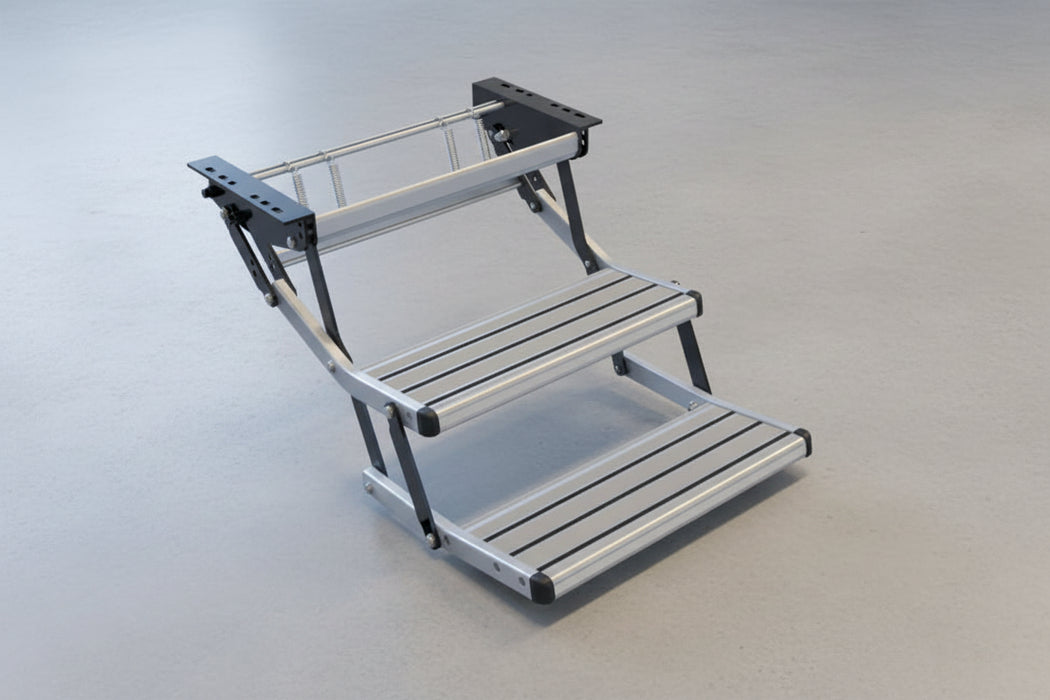

Double Pull-Out Caravan Step | Heavy-Duty Aluminium Entry Step | 497mm Wide
Make getting in and out of your caravan, motorhome or RV safer and easier with the Coast Double Pull-Out Caravan Step. Built from lightweight yet heavy-duty aluminium, this premium two-step entry system is designed to provide stable, comfortable access for vehicles with higher door heights.
Engineered to withstand Australia's harsh outdoor conditions, the corrosion-resistant aluminium construction delivers long-lasting performance without unnecessary weight. The smooth pull-out sliding mechanism allows the step to extend and retract effortlessly, while the compact underbody design keeps it neatly tucked away when travelling.
Ideal for caravans, camper trailers, motorhomes and RVs, this double-step offers extra stability and confidence every time you enter or exit your vehicle.
Features
- Heavy-duty double pull-out caravan step
- Lightweight, corrosion-resistant aluminium construction

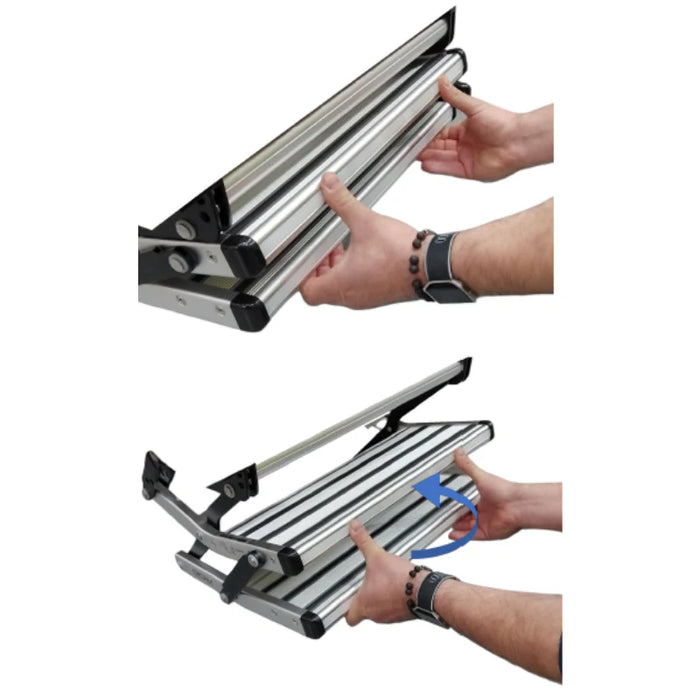

- Smooth sliding mechanism for effortless operation
- Compact fold-away design saves space when travelling
- Provides safer two-step access for higher caravan entry doors
- Ideal for caravans, motorhomes, RVs and camper trailers
- Designed for long-lasting performance in Australian conditions

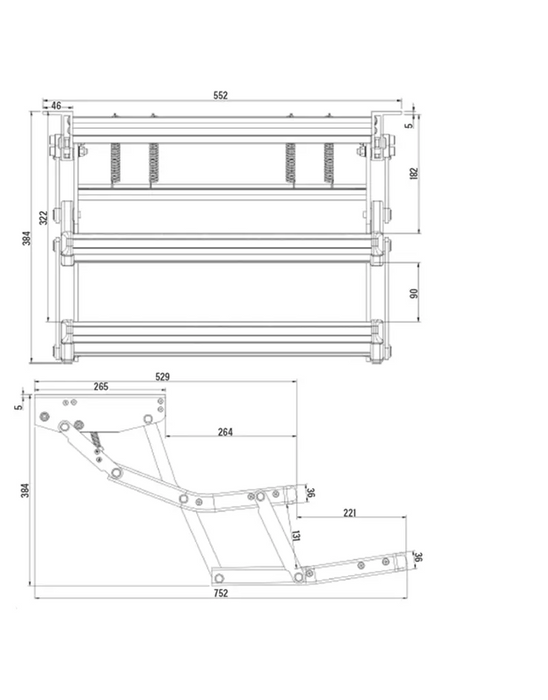

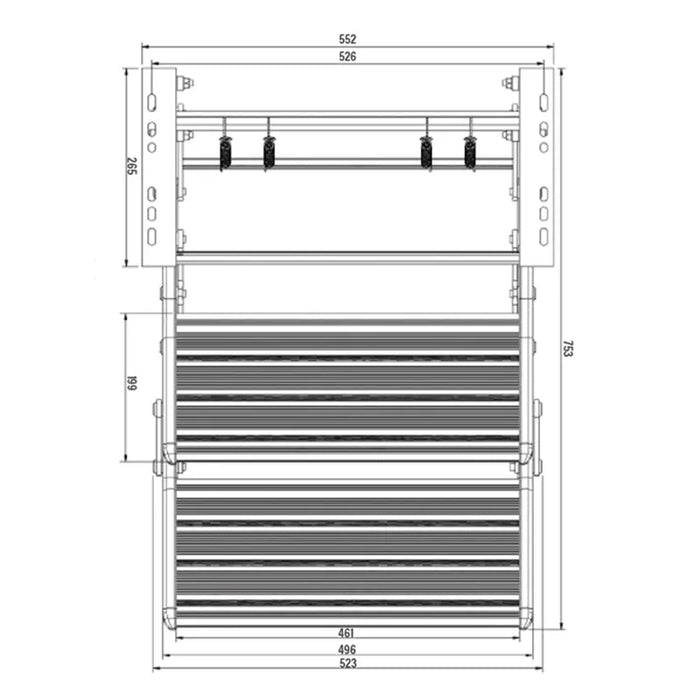

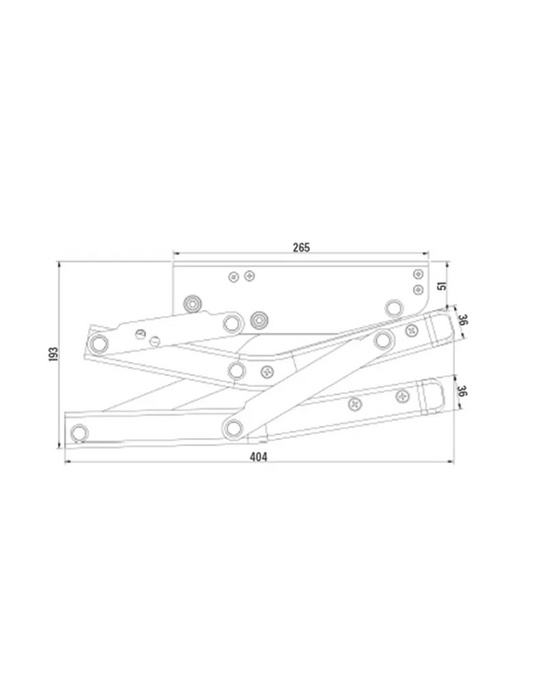

Specifications
- Overall Width: 545mm
- Step Configuration: Double Pull-Out
- Material: Heavy-Duty Aluminium
- Application: Caravan, RV & Motorhome Entry
- Mounting Type: Underbody / Chassis Mount
- Mounting Hardware: Not Included
- Extended Projection: Approx. 550mm
- Closed Projection: Approx. 300mm
- Overall Drop (Mounting Surface to Lowest Step): Approx. 440mm
- Individual Tread Depth: Approx. 200mm per step
- Tread Width: 545mm
| Model | Part Number | Step Size (W × D × H) | Net Weight (NW) | Maximum Static Load Rating |
|---|---|---|---|---|
| Double Step | 450-01418 | 461 × 199 × 36 mm | 7.40 kg | 200 kg |
Installation Information
- Mounting hardware is not included.
- Must be securely mounted to a structural chassis member.
- Do not mount directly to unsupported flooring.
- Ensure sufficient clearance for both extension and retraction.
- Professional installation is recommended if you are unsure.
Before You Order
Please confirm the following measurements before purchasing:
- Minimum mounting width of 545mm
- Doorway height from ground
- Underbody clearance when the step is folded away
- Extension clearance when fully deployed
- Suitable structural mounting points on your chassis
Frequently Asked Questions
Does the step lock closed?
Yes. When correctly installed, the sliding mechanism securely holds the step in the closed position during travel.
What is the total drop from the mounting surface?
Approximately 440mm from the mounting surface to the lowest tread.
Are mounting bolts included?
No. Mounting hardware is not supplied.
What is the overall width?
The overall width is 545mm.
Why You'll Love It
Whether you're heading away for a weekend or travelling Australia full-time, the Coast Double Pull-Out Caravan Step makes every entry and exit safer, easier and more comfortable. Its durable aluminium construction resists corrosion, the smooth pull-out action is effortless to use, and the double-step design provides added confidence for families, seniors and anyone with a higher caravan or motorhome doorway. Built to last and designed for Australian adventures, it's an upgrade you'll appreciate every time you step inside.
