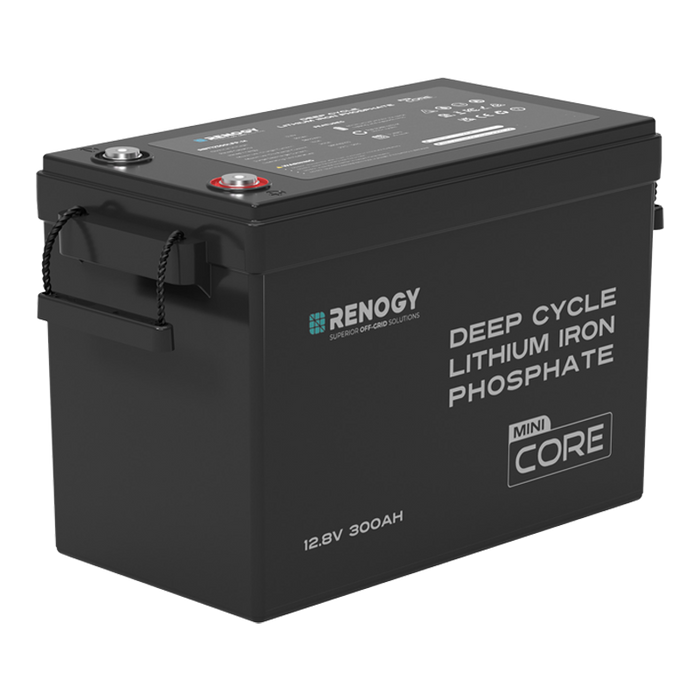

RENOGY MINI | 12V 300Ah LiFePO4 Battery | 384x194x253mm | with Battery Management System
When you need serious off-grid power without sacrificing valuable space, the Renogy CORE Mini 12V 300Ah Lithium Iron Phosphate (LiFePO₄) Battery is ready to deliver. Compact, lightweight, and built tough, this high-capacity battery is perfect for caravans, camper trailers, 4WDs and marine applications where big energy is essential.
Product Description
Despite its name, the CORE Mini packs a huge 3840Wh of usable energy into a compact footprint that fits neatly into tight storage areas. It’s built with premium lithium cells for long-lasting performance, offering up to 5000 cycles at 80% depth of discharge (DoD)—making it a dependable choice for extended touring, off-grid living, or energy-hungry setups.

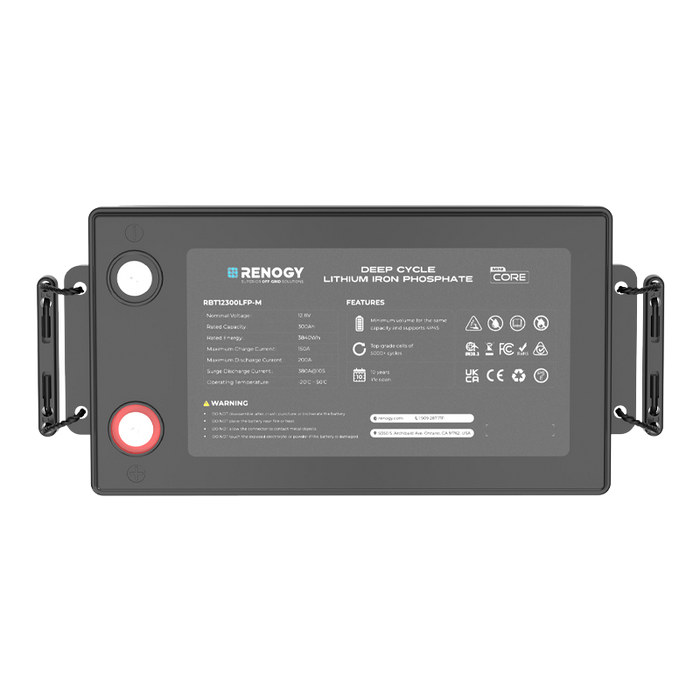

With a built-in Battery Management System (BMS), the CORE Mini provides automatic protection against overcharging, over-discharging, short circuits and low-temperature charging. Whether you’re powering fridges, air-conditioners, inverters, or essential camping gear, this battery is ready for the demands of life on the road.
Key Features:
- Massive 300Ah Capacity – High-output power in a compact, easy-to-fit case
- Built-in BMS Protection – Safe and reliable with smart internal safeguards
- Lightweight Design – At just 25kg, it’s much lighter than equivalent AGM setups
- Weather-Resistant Build – IP65-rated to handle harsh touring environments
- Long Cycle Life – Up to 5000 cycles at 80% DoD for excellent long-term value
- Expandable System – Connect multiple batteries to build your ideal power bank
Specifications
-
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Rated Capacity: 300Ah
- Nominal Voltage: 12.8V
- Cycle Life: 5000 cycles (80% DOD at 25°C)
- Charge Voltage Range: 10V to 14.8V
- Maximum Charge Current: 150A
- Maximum Discharge Current: 200A
- Peak Discharge Current: 380A (up to 10 seconds)
- Charge Temperature Range: 0°C to 60°C
- Discharge Temperature Range: -20°C to 65°C
- Connection Method: Up to 4 in series, 4 in parallel, or 4P4S configuration
- Protection Rating: IP65 (dust and water resistant)
- Dimensions (L x W x H): 384 x 194 x 253 mm
- Weight: 25.0 kg
- Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm
